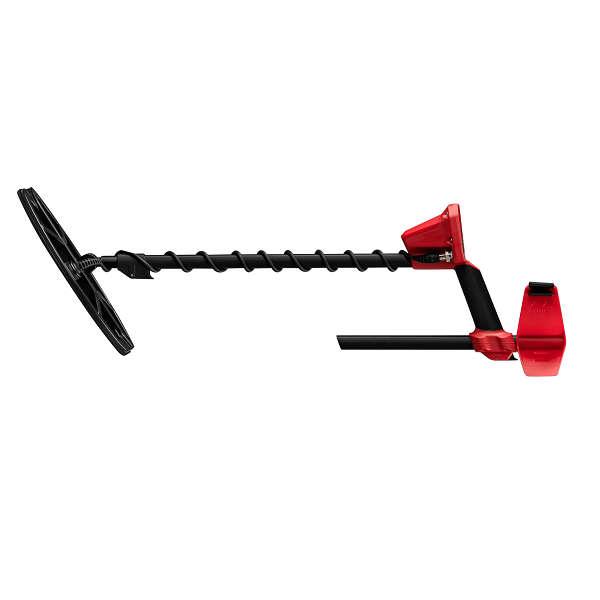

ANQUISH 540: for the serious detectorist who demands ultimate performance. As if Multi-IQ technology, audio control, and pinpoint wasn’t enough the 540 also boasts iron-bias control, red LED backlight and rechargeable batteries. What’s more, it comes with a waterproof 12” coil as standard for greater depth. No matter where the hunt takes you, the 540 is the ultimate detector that lets you detect on your terms.
SIMULTANEOUS MULTI-FREQUENCY
Why Multi-IQ? Because with Minelab’s revolutionary Multi-IQ technology, you’ve got the combined power of multiple detectors in one — all working for you at the same time. Simply turn on and go. Nothing goes undetected and no terrain is off limits. Silver, gold or jewellery. Park, field or beach. Unearth the power of VANQUISH with Multi-IQ.
ALL METALS. ALL SOILS. ALL THE TIME.
ALL-TERRAIN
No matter what you seek, VANQUISH has you covered. Simply select one of the four Search Modes — Coin, Relic, Jewellery, or Custom — then start swinging. Each mode is pre-programmed and optimised to give you the best performance, anytime and anywhere: park, field or beach. You can even save your favourite settings to a custom Search Mode.
VANQUISH welcomes tough terrain. It dominates at the beach in wet sand and salt water, outperforming other detectors that can’t compete. 25 discrimination segments deliver ultimate control over what metals you want to accept or reject.
PACK AND CARRY
1.3kg (2.8 lbs) light with a unique collapsible snap-lock system makes it easy to pack and go.
IRON BIAS
More treasure, less trash. Adjustable Iron Bias control lets you switch between High (default) and Low.
INCLUDED V12 COIL
Cover more ground and search deeper with the V12 12”x9” V12 coil included as standard.
AUDIO CONTROL
Automatic noise cancelling, lag-free audio response and 10-volume settings put you in control.
WATERPROOF

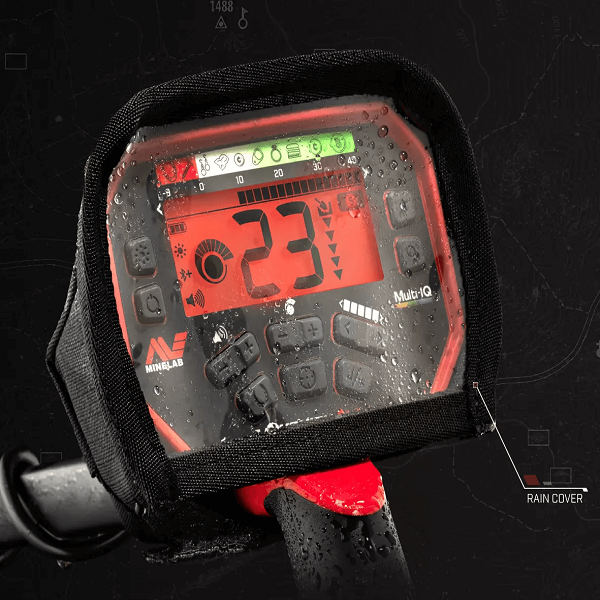

Waterproof coils up to 1 m (3.3 ft) and Water Resistant control pod (with included Rain Cover).
PINPOINT MODE
Included pinpoint mode to help you locate targets with extreme precision.
BACKLIGHT
Red LED Backlight to help low-light vision.
VANQUISH 540 TECH SPECS
- Search Modes: Coin, Relic, Jewellery, Custom, All Metal
- Custom User Search Profile: Yes
- Operating Frequencies (kHz): Multi-IQ
- Noise Cancel: Auto (19 Channels)
- Bluetooth Audio: Yes
- Iron Bias: High (default), Low
- Sensitivity: 10 levels
- Volume: 10 levels
- Target Tones: 5 tones
- Discrimination Segments: 25 segments
- Target ID's: -9 to 40
- Depth Indicator: 5 levels
- Length: Extended: 1450mm (57"), Collapsed: 760mm (30")
- Weight (incl. batteries): 2.9lbs (1.3kg)
- Standard Coil: V12 12"x9" Double-D

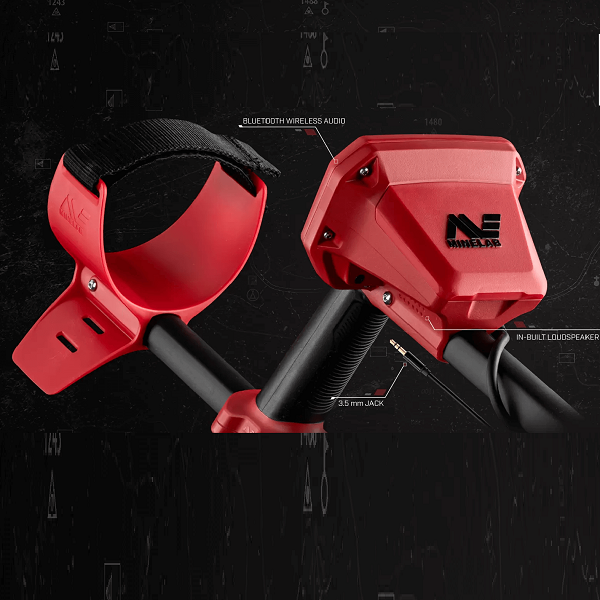

- Audio Output: In-built loudspeaker, 3.5mm (1/8") headphones, Bluetooth wireless headphones
- Supplied Headphones: Wired 3.5mm (1/8") headphones
- Display: Monochrome LCD with red backlight
- Supplied Batteries: 4 x AA NiMH rechargeable
- Waterproof: Coil to 1m/3-feet
- Operating Temperature Range: -10°C to +40°C (+14°F to +104°F)
- Storage Temperature Range: -20°C to +70°C (-4°F to +158°F)
- Key Technologies: Multi-IQ, Bluetooth, aptx™ Low Latency
- Warranty: 3 years control box and coil
