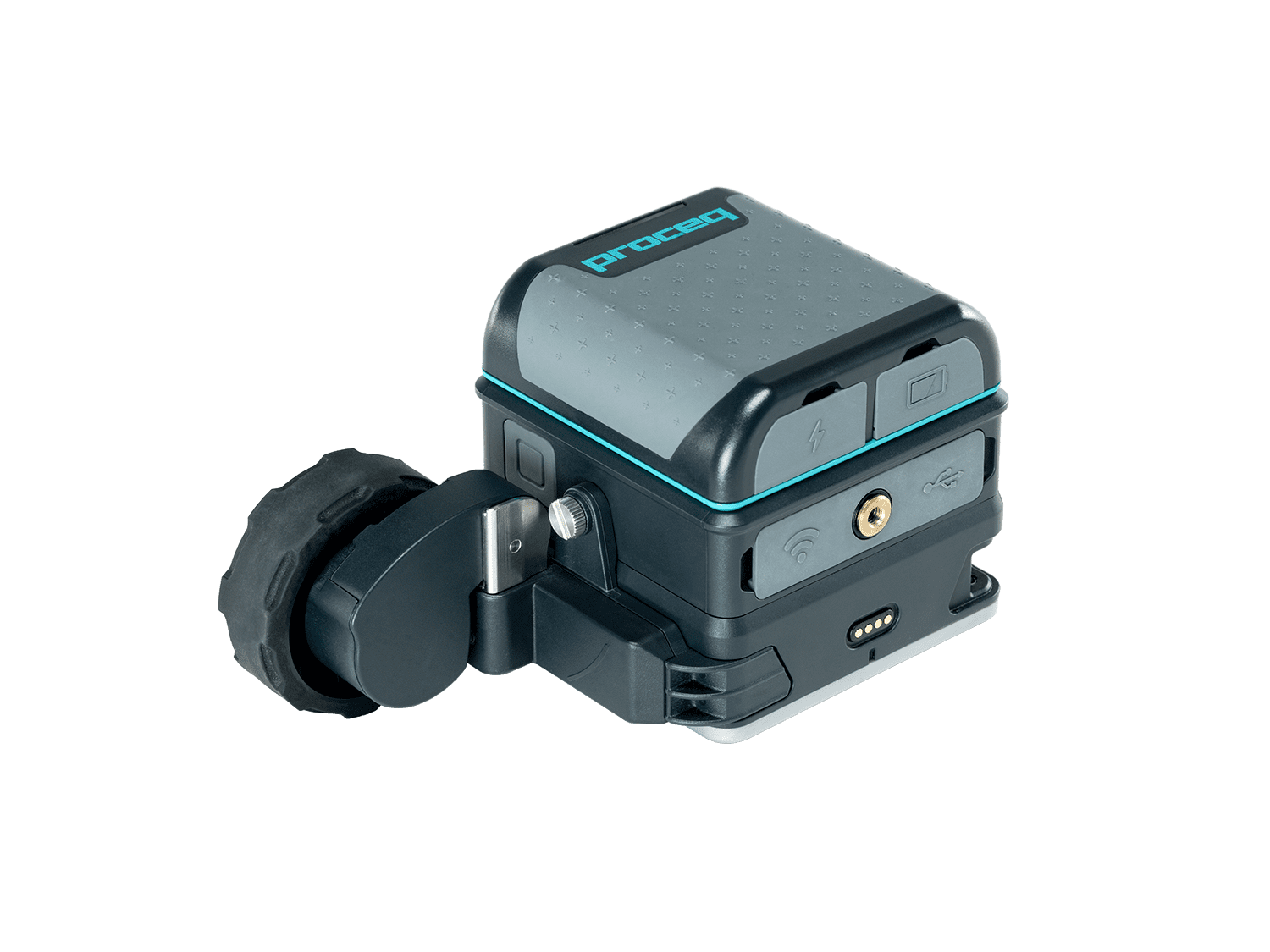

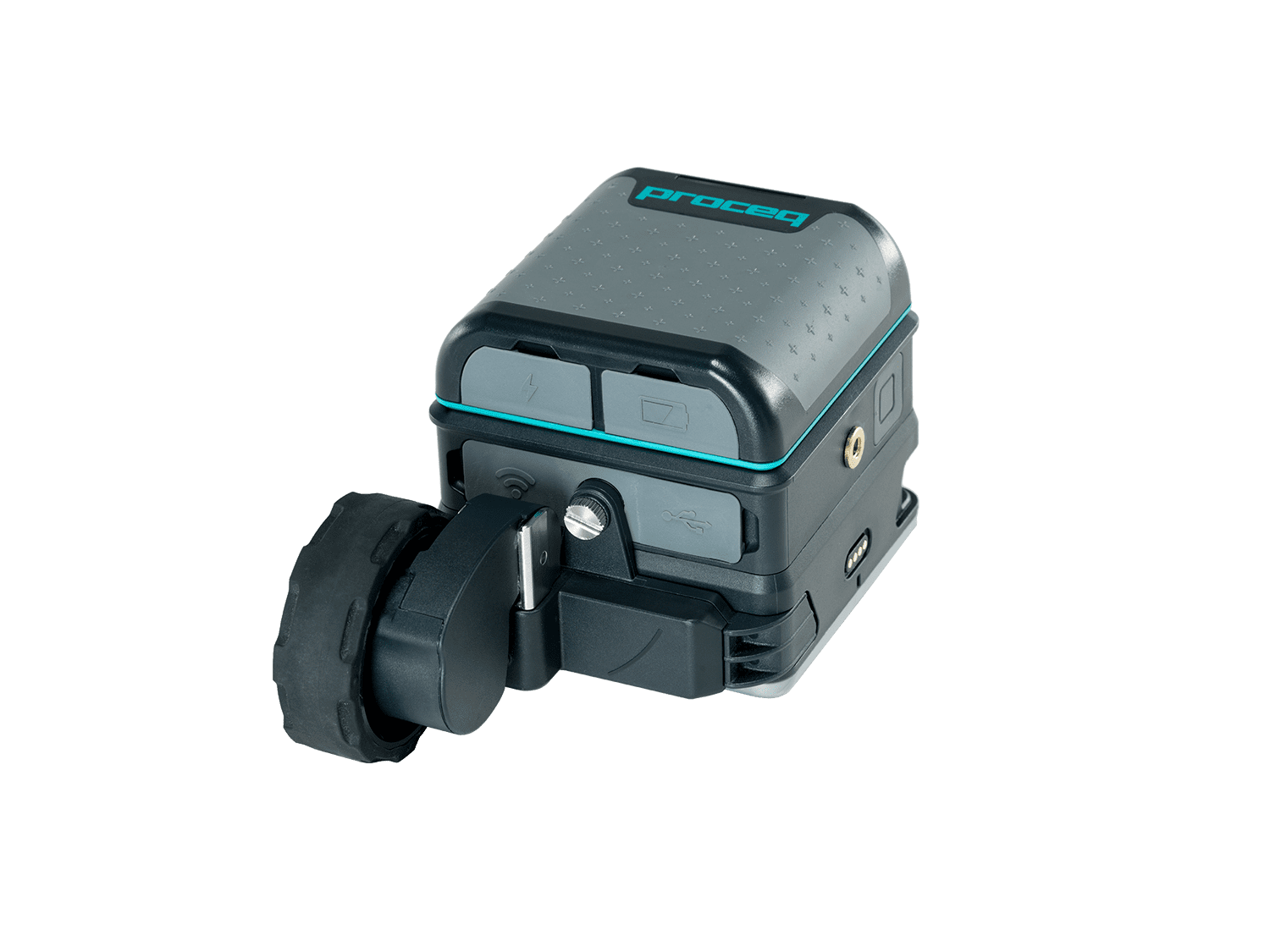

PROCEQ-GP-8800 GPR SYSTEM
- Availability: In Stock
- INR 1200000.00 (Inclusive of custom duty)
-
Proceq Ground Penetrating Radars
GP8800

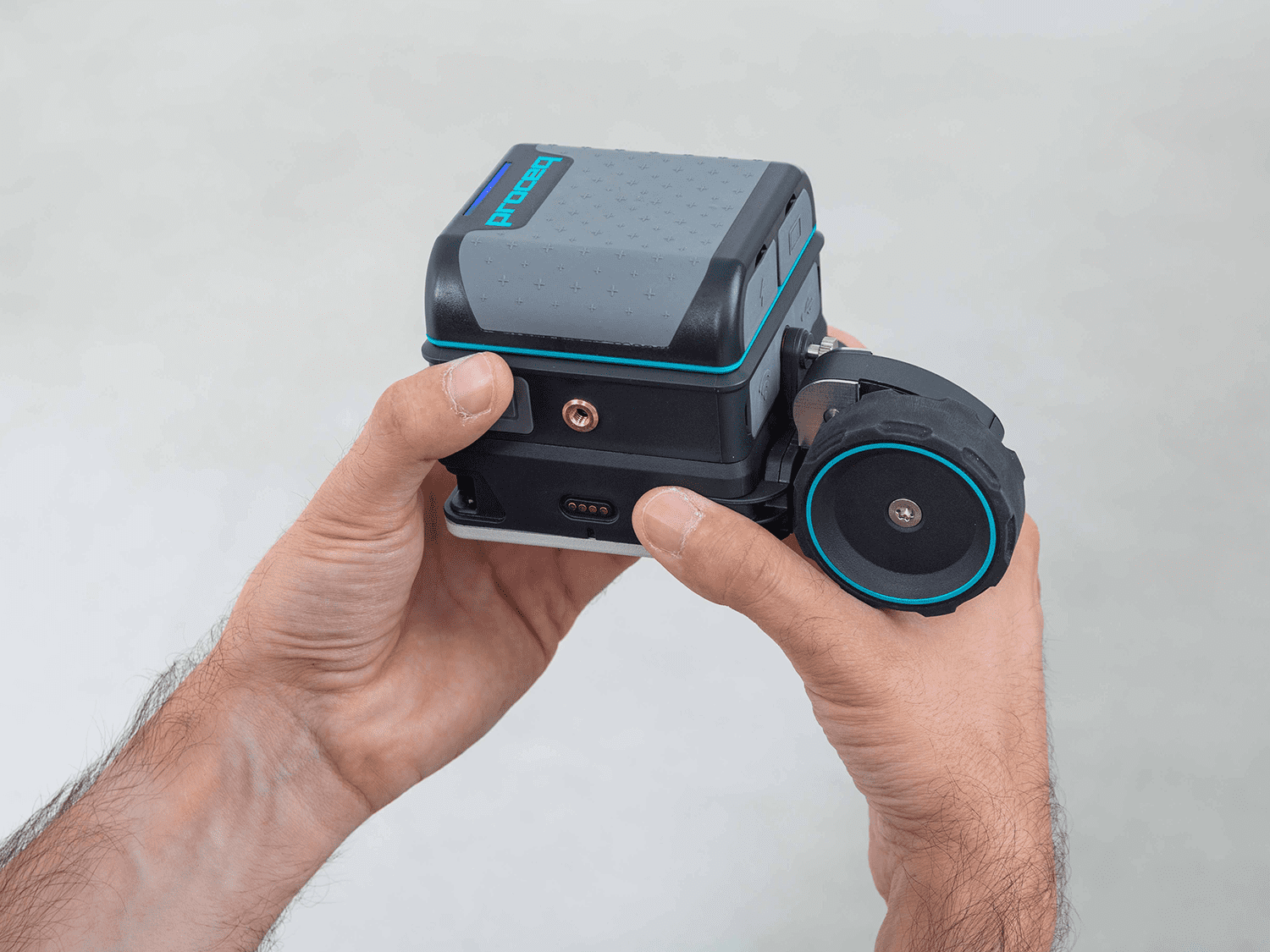

Concrete inspections and structural imaging with SFCW ground penetrating radar technology now fits at the palm of your hand
- Superior insights thanks to unparalleled depth and clarity of data from the powerful probe
- Easy to learn and to operate with our user-friendly, feature-rich, intelligent software
- Unmatched productivity through user-centric inspection ergonomics and digital workflow
Applications:

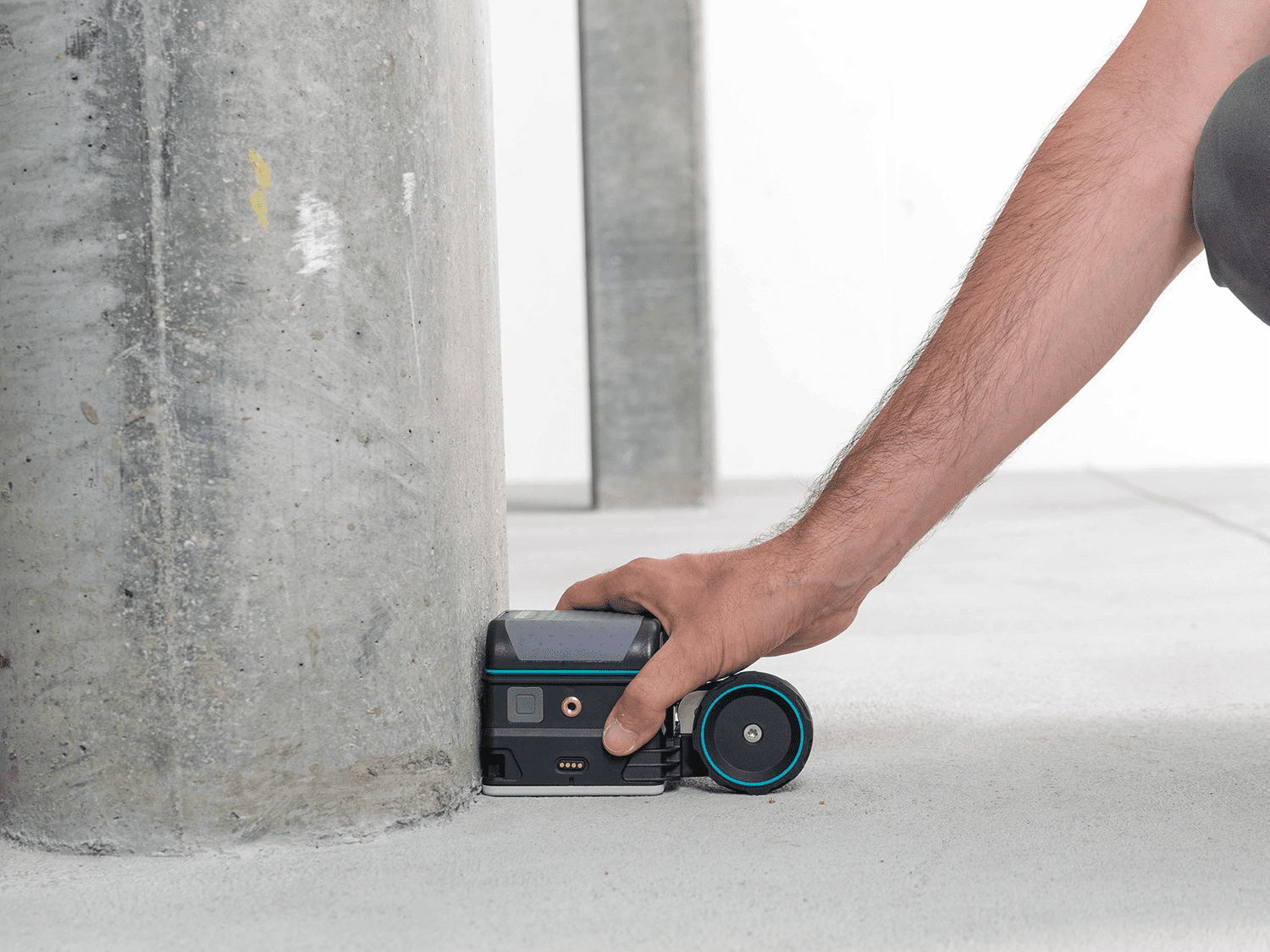

Congested rebar configurations / Areas close to walls & underneath pipes / Irregular and curved surfaces
Delivery Partners:
Proceq Ground Penetrating Radars
GP8800
Concrete inspections and structural imaging with SFCW ground penetrating radar technology now fits at the palm of your hand
- Superior insights thanks to unparalleled depth and clarity of data from the powerful probe
- Easy to learn and to operate with our user-friendly, feature-rich, intelligent software
- Unmatched productivity through user-centric inspection ergonomics and digital workflow
Applications:
Congested rebar configurations / Areas close to walls & underneath pipes / Irregular and curved surfaces
Gigantic clarity. Tiny size.
Performance
Superior depth and clarity of data thanks to the unique Swiss Made radar technology with all the frequencies you'll ever need. Immediate insights with 3D and Augmented Reality.
Versatility

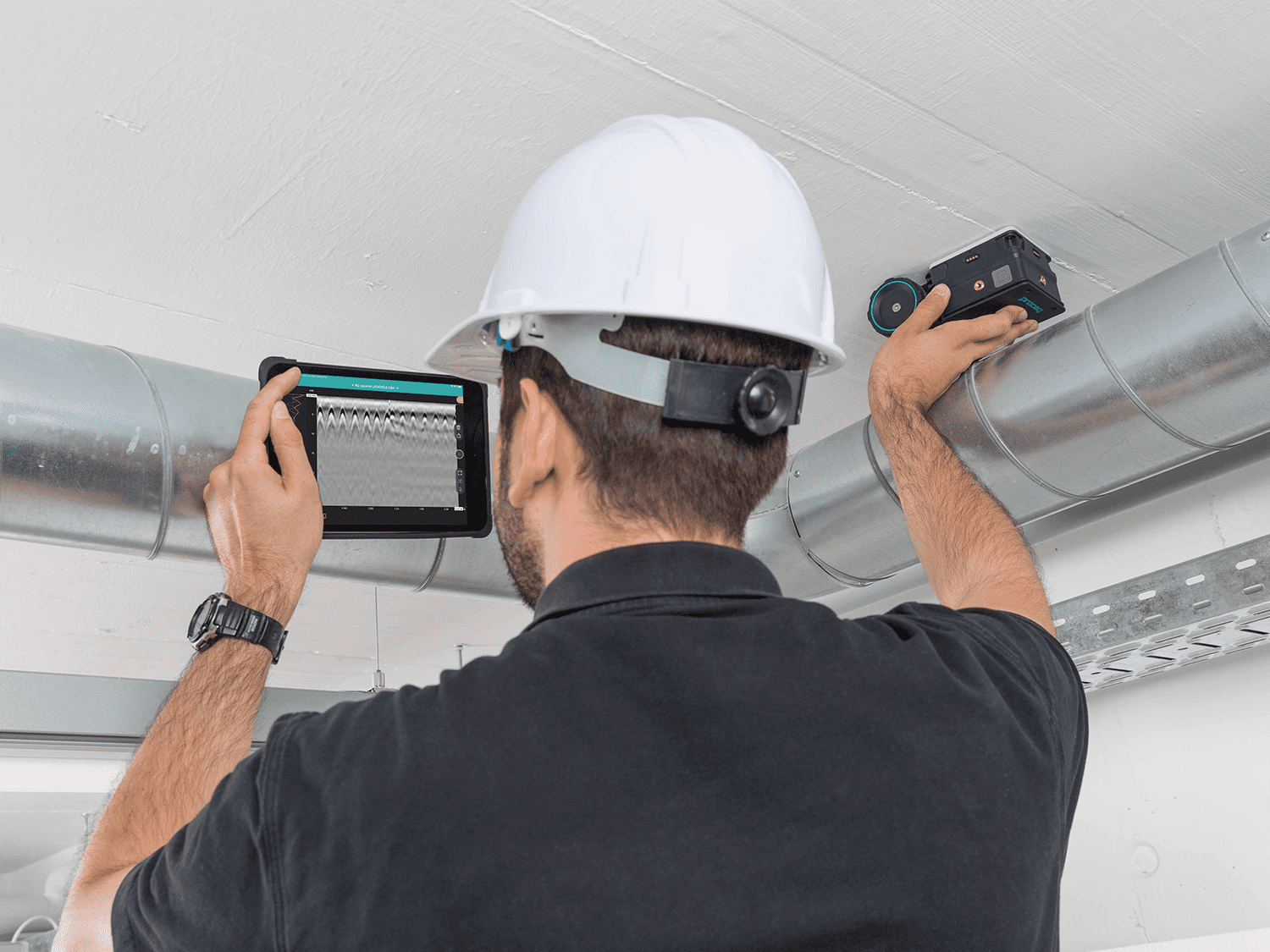

Inspect with ease of use, from the tightest spots to the tallest walls to the longest streets. Superior ergonomics to tackle any challenge with comfort, without cables.
Productivity
A mobile app that lets you annotate measurements with voice, photos and comments. Generate reports and share them instantly. Access your data from anywhere, anytime.
Productivity
A mobile app that lets you annotate measurements with voice, photos and comments. Generate reports and share them instantly. Access your data from anywhere, anytime.| Software / Workspace App | |
| Measurement modes | Superline Scan (1000m / 3281 ft) Area Scan (with Flexible Grid up to 100m2 / 1076 ft2) |
| Review modes | Superline scan1 A-scan (incl. envelope) Migrated view Non-migrated view Split view1Time-Slice view2 Basic3D viewAR |
| Advanced visualization | Time-Slice view Pro 3D view Augmented Reality (AR) |
| Reporting | Workspace integration Automatic Logbook SEG-Y export Instant report generation Share via URL |
| Export formats | JPG PNG CSV SEGY HTML |
| Display Unit Specs*: | Latest Apple iPad recommended (iPad with iOS 11.0 and higher) Screen size: From 7.9" to 12.9" Resolution: Up to 2732-by-2048 Memory: Up to 2TB Weight: Down to 301 g / 10.6 oz Camera: Up to 12MP Wide and 10MP Ultra Wide Optional: USB-C, 5G, Face ID |
| Display Unit Sensors*: | LiDAR Scanner (optional) Three-axis gyro Accelerometer Ambient light sensor Barometer Built-in GPS/GNSS |
| Sensor | |
| Radar technology | Stepped-frequency continuous-wave (SFCW) GPR |
| Modulated frequency range | 400-6000 MHz |
| Penetration depth | 65 cm / 25.6 in |
| Battery | Flight-safe, removable pack, 4x AA (NiMH) |
| Dimensions | 8.9 x 8.9 x 7.6 cm 3.5 x 3.5 x 3 in PNG CSV SEGY HTML |
| Weight | 487 g / 17.2 oz (excl. battery pack) |
| Ground clearance | 0 cm |
| Antennas | 1 |
| Antenna distance to edge | 4.5 cm / 1.77 in |
| Special features | Wireless wheel, reconfigurable at any time without tools. Cross-polarization (trailing and side-car configurations) USB-C tethering to battery pack/power bank |
| IP rating | IP54 |
| Connections | WiFi (802.11n) and USBC to display unit |
| Configuration | Wireless integrated push & pull cart |
| Autonomy | 2.5 h (up to 8 hours with off-the-shelf 10'000 mAh power bank, not included) |
