GPA 500 XS

  • Availability: In Stock

  • INR 750000.00 (Inclusive of custom duty)
    • Gold deposits, like gold reefs and gold belts
    • Natural gold and gold ore
    • Buried treasures
    • Gold Nuggets
    • Metal objects
    • Cavities and voids like tunnels, tombs, caves and graves
    • Water etc

    Delivery Partners:


  • Gold deposits, like gold reefs and gold belts
  • Natural gold and gold ore
  • Buried treasures
  • Gold Nuggets
  • Metal objects
  • Cavities and voids like tunnels, tombs, caves and graves
  • Water etc.

The new XS model GPA 500 XS is the compact successor to the GPA 500.

The 3D ground scanner model 2020 is equipped with the new active touch display of the XS series and is very easy to use.

The advantages of GPA ground scanners are the high depth performance and the ability to discover soil anomalies, e.g. cavities. Combined with the professional pulse induction technology, localized metals will be discriminated, so that the new GPA 500 XS is ideally suited for gold prospector and treasure hunter.

The GPA 500 XS can be used universally on all soils and reaches a maximum depth of up to 10 meters. Both rocky soils, but also highly mineralized soils and rocky ground are no difficulty, since the GPA 500 XS adjusts to the respective soil and can therefore be used worldwide.

GPA 500 XS 30x30cm coil
GPA 500 XS Universal probe search

The advantages of the new GPA 500 XS:

  • Measurement of soil changes, e.g. Metals, cavities and treasures up to a maximum depth of 10 meters
  • Compact ground scanner with integrated metal discrimination and active touch display for easy operation
  • Integrated Gold ID-XL metal discrimination with metal type display, e.g. Gold, aluminum, copper
  • KTS 3D Android app pre-installed on the supplied tablet computer
  • Made in Germany, available with the certificate of origin from the IHK Darmstadt (German Chamber of Industry and Commerce)

The GPA probe measures soil changes, which are caused by gold and all other metals, cavities and non-metallic objects. The 3D ground scanner displays soil changes with the 3D visualisation software and 2D live mode search feature.

With the help of the integrated GOLD ID-XL and the gold detector coil, gold, copper and aluminum are discriminated in the advanced ID-mode and displayed as conductivity values.

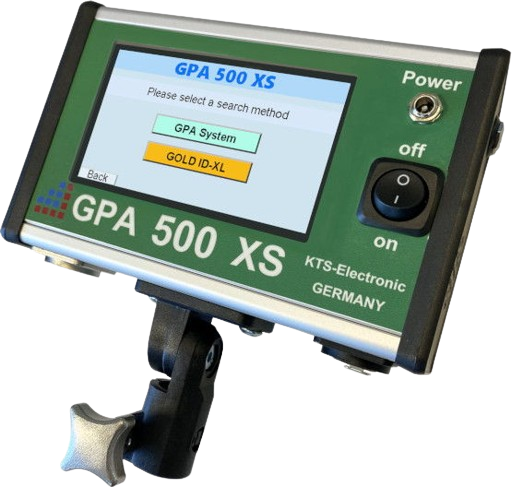

Electronic unit

The compressed construction, a large display, plus a modified pulse induction electronic guarantee a higher search performance and an advanced metal discrimination.

Via Bluetooth the GPA system is wirelessly connected to the provided tablet computer. Through the visualisation software soil changes are displayed in 3D and 2D presentation.

GPA 500 XS electronic unit

Metal discrimination

GOLD ID-XL identifies gold from other metals and indicates the metal type through the conductivity value. Simultaneously an acoustic metal discrimination by various tone pitches takes place.

Unlike to other metal detectors, a constant metal discrimination is carried out. Conductivity value and metal type (e.g. "Gold") are immediately displayed.

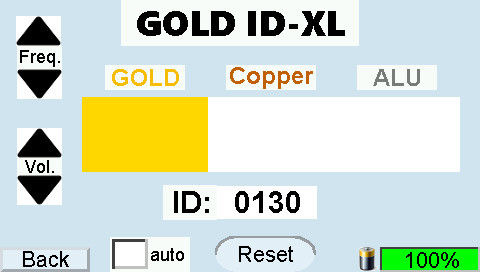

GOLD-ID-XL display Gold

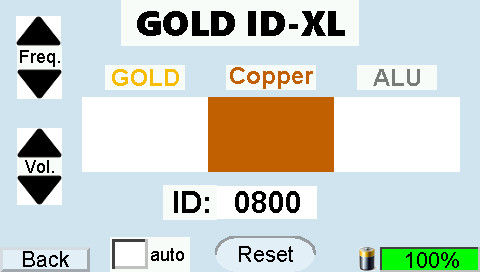

GOLD-ID-XL display Copper

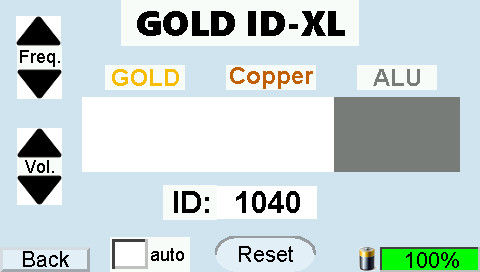

GOLD-ID-XL display Alu

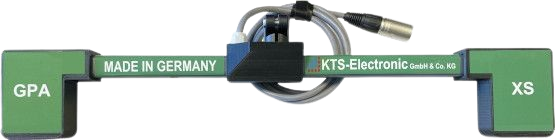

GPA XS probe

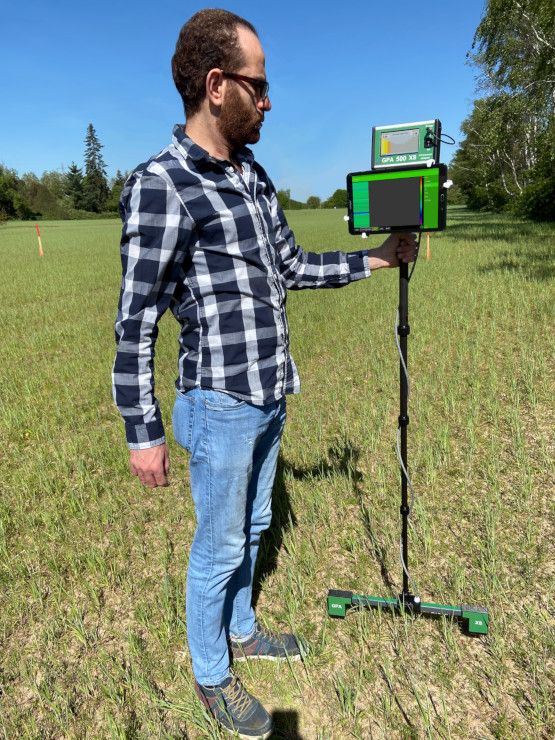

GPA 500 XS Universal probe

The excellent search performance of GPA 500 XS is reached through high-performance sensors, which are integrated in the GPA probe.

GPA 500 XS comes with the 50cm (20”) universal probe. The probe is attached to an extendible carbon telescope bar and with a weight of only 400 grams markedly light and easy to carry.

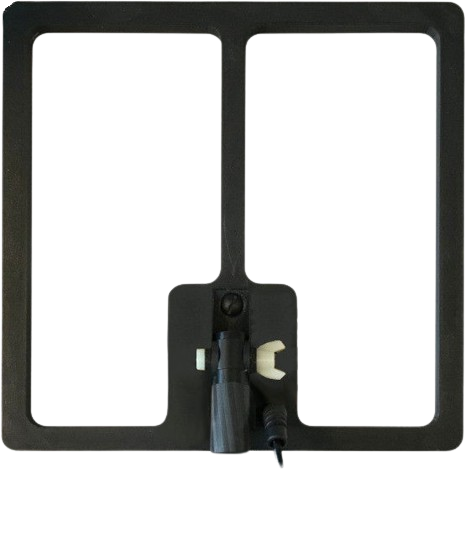

30x30 cm searchcoil (12")

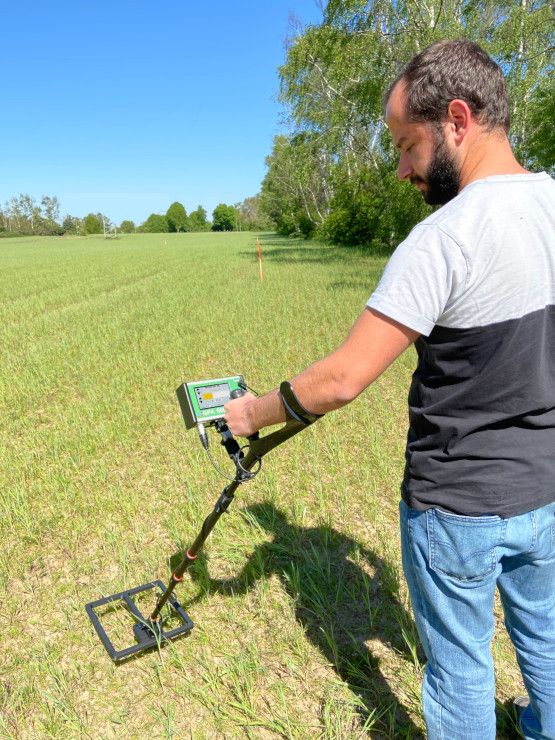

GPA 500 XS 30x30 cm coil

This waterproof 30x30 cm searchcoil needs no additional adjustments and is applicable to locate particularly small metal items as well as large objects.


Compared to other devices, which record data via parallel interface, the Bluetooth-connection allows a fast and save transfer of measured data to the tablet computer.

The GPA 500 XS software displays the measured soil changes on the provided tablet computer. The presentation can alternatively be displayed 2-dimensional or 3-dimensional. Located metals are shown in separate color.

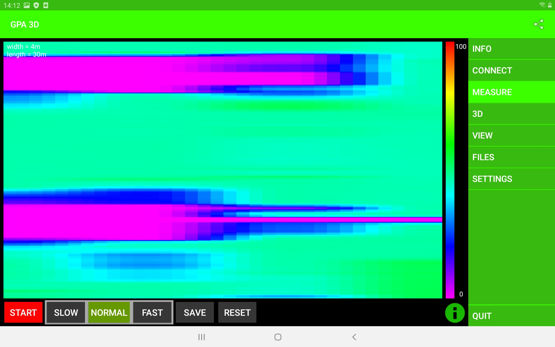

GPA 500 XS - KTS 2D - Softwarefig.: 2D presentation

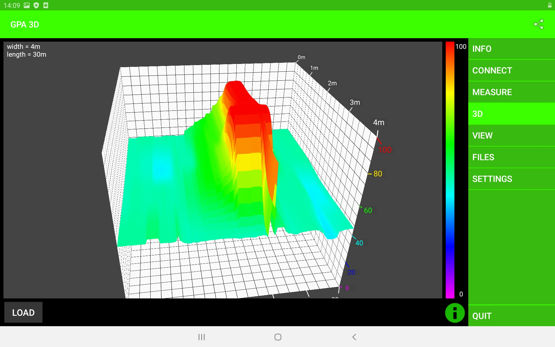

GPA 500 XS - KTS 3D - Softwarefig.: 3D presentation

The analysis and visualisation software is pre-installed on the provided tablet computer. In case you want to transfer the 3D presentations and measured data to another computer, the software is already installed on a provided USB stick.

Rechargeble Li-Ion battery pack data:

  • Charge voltage: 14,8 Volt
  • Max. charge current: 3 Ampere
  • Max. discharge current: 8 Ampere
  • Capacity: 2600 mAh


  • GPA 500 XS electronic unit incl. Bluetooth®
  • Integrated GOLD ID-XL pulse-induction metal detector
  • GPA 500 XS 50cm (20") probe incl. 2-piece carbon telescope bar
  • GOLD-ID-XL waterproof searchcoil 30x30 cm (12") incl. 2-piece carbon telescope bar.
  • 1x1m search frame with cable in pipe, 8-fold dismountable (including backpack)
  • Tablet computer (Android) with pre-installed software incl. Li-ion battery and charger
  • External battery pack
  • Quick charger 220 Volt incl. 110 Volt adapter
  • Power inverter with car loading cable
  • Solid hard-top case


  • New "GPA-Visualizer" App for Android (already installed on tablet computer)
  • USB flash drive with software for processing data on other computers


  • English, German, French and Spanish user's manual
  • 2 years manufactuer's warranty for the entire scope of delivery (including hardware and software)

Software / Workspace App
Basic data
Operating temperatures-20°C - 60 °C
Data transmissionBluetooth®
Suitcase (protection class)IP protection class 67
Total weight (package)11,5 KG
Dimensions package (H x W x D)37 cm x 62 cm x 39 cm
Electronic unit
Dimensions (H x W x D)11,2 cm x 17 cm x 6 cm
Weight710 grams
Processor speed20 MHz
DisplayTFT touch display
Bluetooth®Class 2 (10 meters)
Search methodsGPA and PI
Sampling ratevariable
Measurement resolution16-bit
Battery pack
Cell typeLithium ion
Dimensions (H x W x D)10,2 cm x 8 cm x 3 cm
Weight260 grams
Operating time4 - 6 hours
Charging timemax. 90 minutes
Output14,8 V
XS Universal probe
Sensor typeMultisensor
Ground compensationYes
Dimensions (H x W x D)11,5 cm x 50,4 cm x 3 cm
Weight 430 grams
30 x 30 cm coil
Ground compensationYes
Dimensions (H x W x D)30 cm x 30 cm x 4,8 cm
Weight610 grams
1 x 1 m search frame
Ground compensationYes
Dimensions (H x W x D)100 cm x 100 cm x 5 cm
Dimensions in bag (H x W x D)54 cm x 15 cm x 15 cm
Weight1,57 KG
Minimum computer requirements
Operating systemAndroid
InterfacesUSB-C, Bluetooth®
Free disk space100 MB
Random Access Memory (RAM)1 GB
Display size8,7"
Processor speed1,2 GHz
Directive 2004/108/ECYes
DIN EN 61326Yes
VDE 0875-11Yes
Certificate of OriginAvailable. Issueance by the IHK Darmstadt (Chamber of Industry and Commerce) on demand
