GPA 1000 XS

  • Availability: In Stock

  • INR 115000.00 (Inclusive of custom duty)
  • KTS-Electronic introduces the successor of GPA 1000, the worldwide known ground scanner

Delivery Partners:


KTS-Electronic introduces the successor of GPA 1000, the worldwide known ground scanner.

The new GPA 1000 XS model is lighter and more compact as the previous model GPA 1000 V16. Furthermore it offers the following advantages:

  • Both electronic units of GPA 1000 and GOLD SCAN III are built-in.
  • Two different KTS-programs for the GPA 1000 XS (Android)
  • New GOLD SCAN III metal discrimination with different colors for gold, copper, aluminium and ferro metals.
  • Touchdisplay for an easier usage, better graphics and data output.
  • New 400g Universal probe (towards 1200g of previous model) for 10m and 15m search depth, selectable on screen without sensor switch.
  • Waterproof 30 x 30 cm (12") GOLD SCAN III coil for greater search performance and comfort in favor of durable searches.

GPA 1000 XS is offered in a set and uses the high depth performance of the GPA technology for professional gold prospecting, treasure hunting and ground scanning.

The GPA 1000 XS set is applicable on every soil type. Through precise measuring of soil changes the device finds gold and other metals and locates cavities up to a maximum depth of approx. 15 meters.

KTS-Electronic - GPA 1000 XS

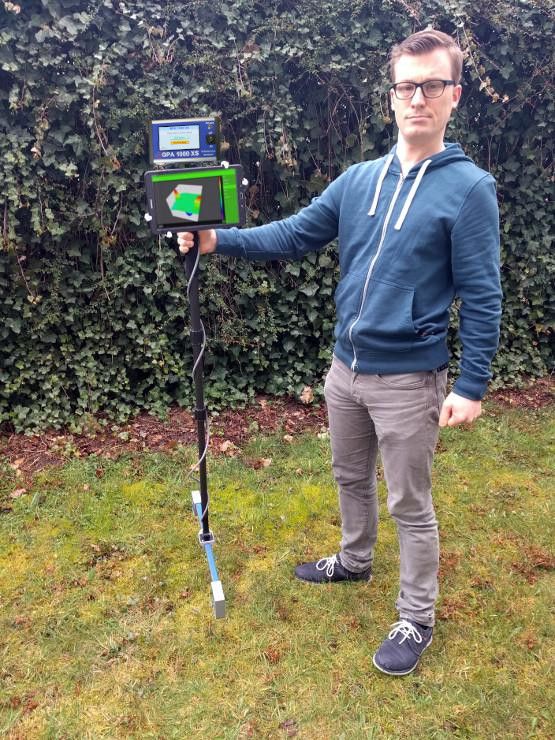

KTS-Electronic - GPA 1000 XS tablet

Due to precise measurement of soil changes the GPA 1000 XS set enables the:

  • Identification of gold, precious metals, cavities,  ancient treasures
  • Determination of size and shape of the findings
  • Presentation in 2D and 3D on screen,
  • Transmission of wireless data transfer to tablet computer through Bluetooth®

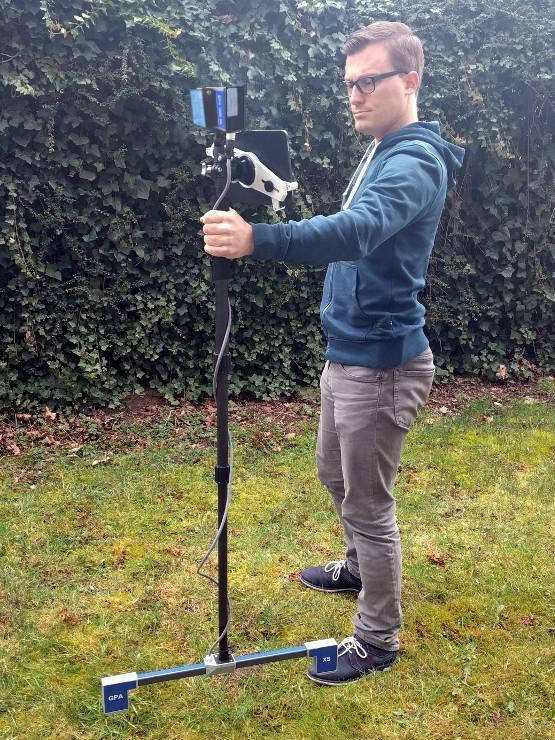

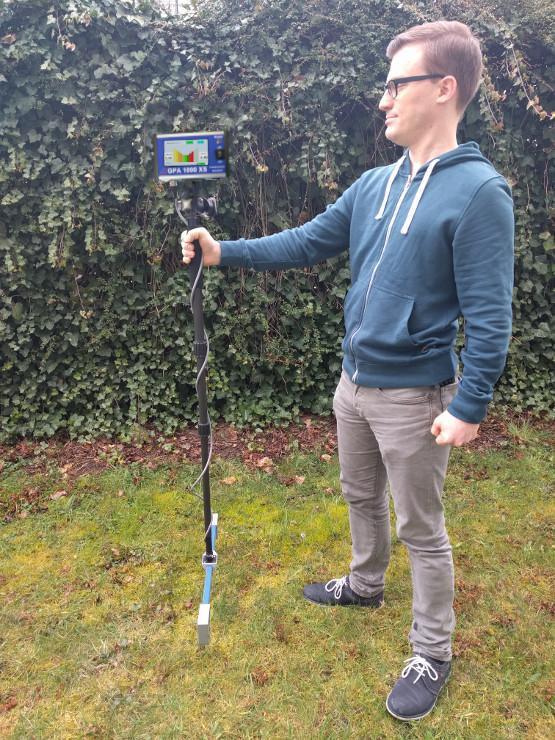

KTS-Electronic - GPA 1000 XS search

The GPA 1000 XS is a professional ground scanner, which is developed and produced only by KTS-Electronic GmbH & Co. KG in Germany. With a maximum search performance of approx. 15 meters (approx. 49 feet) GPA 1000 XS outmatches other gold detectors and professional metal detectors with their outdated technology and limited potential by far.

The device's excellent search performance is reached through newly developed XS probes, which are equipped with sensitive high performance sensors and a microprocessor-controlled earth's magnetic field compensation. As a result the GPA search system marks the present state-of-the-art and is useable also on highly mineralised soil and rocky ground.

The GPA 1000 XS is easy to control trough the touch display and can be operated without prior knowledge. The current version is provided with only oneON-/OFF-button. After power up the display immediately shows all relevant informations.

Mineral resources, treasures and cavities have an influence on the ground balance. Compared to conventional metal detectors the GPA technology has a crucial advantage to measure changes in the ground and to display these changes through a 3D visualisation software (which is developed by KTS-Electronic) on the provided tablet computer.

Electronic unit

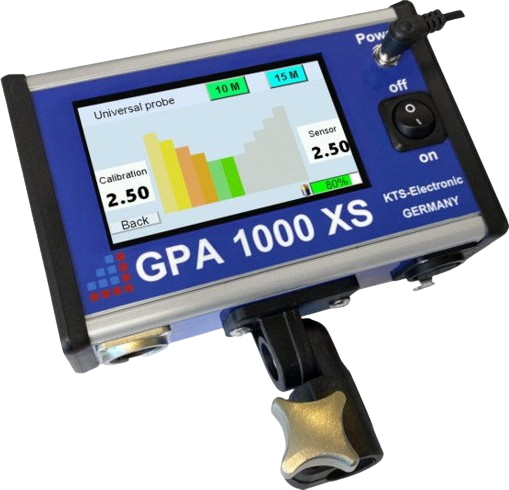

KTS-Electronic - Electronic unit

Equipped with an integrated touch display the unit delivers data of battery status, provides information on compensation and shows the sensor value. The data is automatically digitized and will be transformed wirelessly via Bluetooth® to the tablet computer. Without the necessity of further settings the calibration is conducted by a microprocessor and will be carried out automatically on every soil. The GPA 1000 XS therefore is applicable on every soil type. The electric power supply (operating time approx. 4 to maximum 6 hours) is guaranteed through two exchangeable 2900 mAh Li-ion batteries. Through the provided quick-charger the battery is fully charged within 90 minutes. An external car charging cable for the connection to your car's cigarette lighter (socket) is part of the equipment as well as an additional 110 Volt adapter, beside 220 V.

Metal discrimination

KTS-Electronic - GPA 1000 XS 30 x 30 cm probe

The GPA 1000 XS electronic unit contains the GOLD SCAN III gold detector, which also is newly developed. The device comes with a 30 x 30 cm (12") search coil. The gold detector GOLD SCAN III discriminates gold from other metals and indicates the scanned metal type on the display, like gold, copper, aluminium and ferrous metal.

Metal kind indications

gpa 3000 display gold scan iii gold
gpa 3000 display gold scan iii copper
gpa 3000 display gold scan iii alu
gpa 3000 display gold scan iii ferrous

Universal probe

The GPA 1000 XS set includes the new compact 60 cm (24") GPA XS universal probe. In order to measure smallest changes in the ground, the probe is equipped with high-sensitivity sensors and an automatic calibration. The probes weighs approx. 400g and are connected to a carbon telescope bar, which easily is adjustable in length.

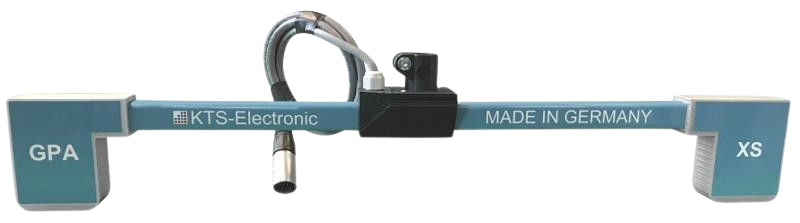

GPA 3000 XS probe1

30 x 30 cm search coil (12")

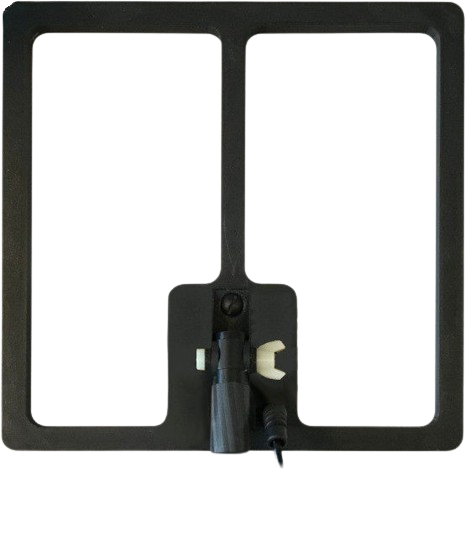

KTS-Electronic - GPA 1000 XS 30 x 30 cm coil

The waterproof coil (30 x 30 cm) is applicable for the location of particularly small metals as well as large objects. There is no need for additional adjustments.

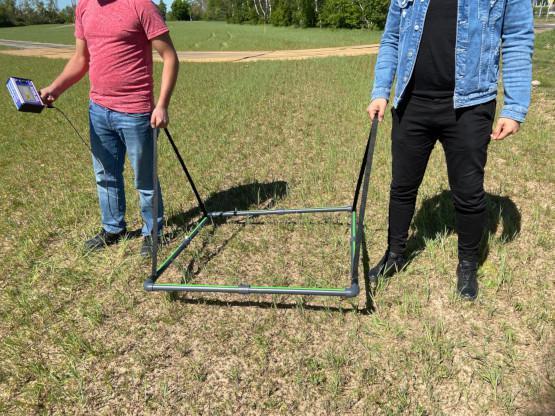

1 x 1 m search frame


The new 1 x 1 m search frame is contained only in the GPA 3000 set and is produced with an internal cable. Large areas are scanned quickly and effortlessly. The search frame is suitable for the deep scanning after medium-sized and big objects and with the aid of shoulder straps it can be carried from 1 to 2 persons. It is made of plastic pipes and is demountable into 4 pieces. The demounted frame is delivered in the attached bag and can be transported easily.

GPA 1000 XS Software

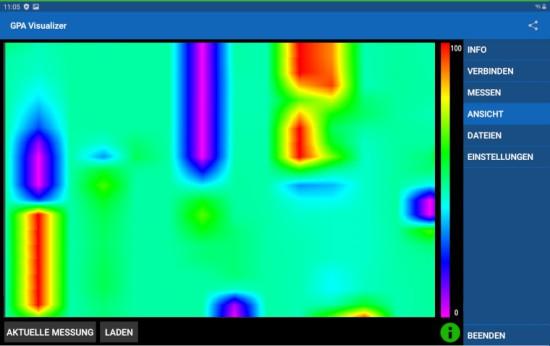

gpa visualizer viewGPA Visualizer 2D representation

Among the KTS 3D software, the GPA 1000 XS is additionally equipped with the new "GPA Visualizer" 3D software. This Apps can be operated with a few easy  commands.

The search starts by pressing the start button and the choice of three various speeds. The search can be interrupted anytime through the stop button. A re-start is possible by touching the start button. The search can be completed when pressing the end button. Press on “3D” and the 2D picture is changed into 3D.

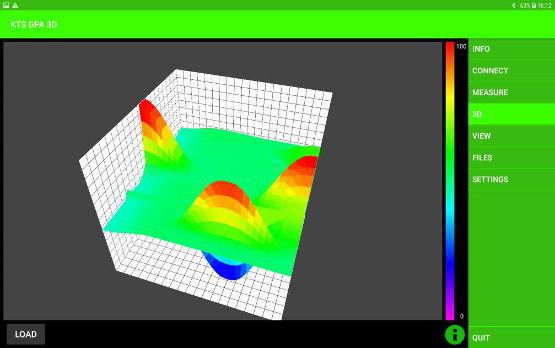

gpa 3d 3dview3D representation

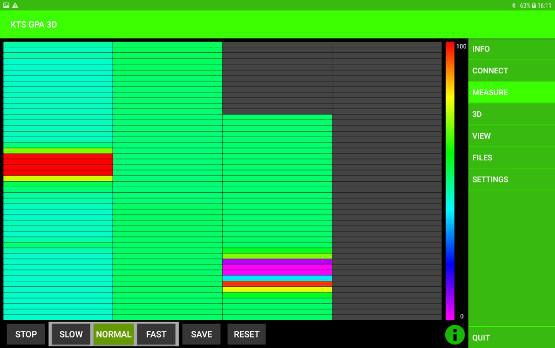

gpa 3d measureDuring measurement

Battery pack

Two new external battery packs with an operation time of 4 to 6 hours and cable are included. Battery pack can be easily attached to the backside of the electronic unit.

Rechargable Li-Ion battery pack data:

  • Volts of direct current: 14,4 Vdc
  • Charge voltage: 16,8 Volt
  • Max. charge current: 3 Ampere
  • Max. discharge current: 8 Ampere
  • Capacity: 2900 mAh


  • GPA 1000 XS electronic unit with integrated GOLD SCAN III metal discrimination
  • GPA XS Universal probe 60cm (24"), telescope bar, armrest and bag
  • GOLD SCAN III 30 x 30 cm (12") waterproof coil
  • Cylindrical coil (waterproof) 5x20cm with 10m cable
  • 1x1m search frame with cable in pipe, 8-fold dismountable (including backpack)
  • Tablet Computer (Android) with KTS Software inkl. Li-Ion Battery
  • 2 external battery packs (cable included)
  • Quick charger 220 Volt incl. 110 Volt adapter
  • Power inverter with car loading cable
  • Solid hard-top case


  • New "GPA-Visualizer" App for Android (already installed on tablet computer)
  • USB flash drive with pre-installed software for processing data on other computers


  • Detailed video manual for assembly, search with display and tablet
  • English and German user manual
  • 2 years manufacturer's warranty for the entire scope of delivery (incl. hardware and software)

Software / Workspace App
Basic data
Operating temperatures-20°C - 60 °C
Data transmissionBluetooth®
Suitcase (protection class)IP protection class 67
Total weight (package)12,3 KG
Dimensions package (H x W x D)37 cm x 62 cm x 39 cm
Electronic unit
Dimensions (H x W x D)11,2 cm x 17 cm x 6 cm
Weight700 grams
Processor speed 20 MHz
DisplayTFT touch display
Bluetooth®Class 2 (10 meters)
Search methodsGPA and PI
Sampling ratevariable
Measurement resolution16-bit
Battery pack
Cell typeLithium ion
Dimensions (H x W x D)10,2 cm x 8 cm x 3 cm
Weight260 grams
Operating time4 - 6 hours
Charging timemax. 90 minutes
Output14,8 V
XS Universal probe
Sensor typeMultisensor
Ground compensationYes
Dimensions (H x W x D) 11,5 cm x 54,6 cm x 3 cm
Weight440 grams
30 x 30 cm coil
Ground compensationYes
Dimensions (H x W x D)30 cm x 30 cm x 4,8 cm
Weight610 grams
Cylindrical coil
Ground compensationYes
Dimensions (H x W x D)21,6 cm x 5 cm
Weight610 grams
1 x 1 m search frame
Ground compensationYes
Dimensions (H x W x D)100 cm x 100 cm x 5 cm
Dimensions in bag (H x W x D)54 cm x 15 cm x 15 cm
Weight1,57 KG
Minimum computer requirements
Operating systemAndroid
InterfacesUSB-C, Bluetooth®
Free disk space100 MB
Random Access Memory (RAM)1 GB
Display size8,7"
Processor speed1,2 GHz
Directive 2004/108/ECYes
DIN EN 61326Yes
VDE 0875-11Yes
Certificate of Origin Available. Issueance by the IHK Darmstadt (Chamber of Industry and Commerce) on demand
