MANTICORE with Multi-IQ+ is the most powerful, fastest, and precise metal detector in Minelab’s history. The heart of MANTICORE is its super-charged Simultaneous Multi-Frequency (MULTI-IQ+) engine. This feat of innovation generates an incredible 50% power increase over the best-selling detector series of all time: EQUINOX. When combined with advanced 2D Target Identification (ID) and rich audio options, the detectorist has every bit of vital information arriving at their eyes and ears. MANTICORE is an unrivalled detecting experience that pushes the boundaries of detecting to deliver more power, more depth, and more finds.
Multi-IQ+ is the newest generation Simultaneous Multi-Frequency engine from Minelab, building on the success of the original Multi-IQ. Multi-IQ+ transmits more power through the coil at a wider range of operating frequencies, to light up more targets in the ground. It has completely revamped signal processing providing enhanced discrimination, greater Target ID resolution, improved target separation, and gives you a greater ability to tune discrimination and audio to suit your detecting conditions. Exceeding expectations with every swing, MANTICORE delivers improved Target ID stability and close target separation. With customisable Ferrous Limits you have unprecedented control to accept ferrous coins, reject complex ferrous targets, or dial in maximum target unmasking in iron.
ULTIMATE SEARCH MODES
MANTICORE delivers 10 customisable Search Modes including All-Terrain optimised for inland detecting; Beach optimised for sand, surf and seawater zones; and Goldfield optimised for detecting gold nuggets.
MANTICORE TECH SPECS- Detect Modes (Customisable): All-Terrain (5), Beach (4), Goldfield (1)
- Operating Frequencies: Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz
- Noise Cancel: Auto, Continuous Auto, Manual (-9 to +9)
- Ground Balance: Auto, Manual, Tracking
- Sensitivity: 1 to 35
- Target Identification: Conductive (0-99 with ferrous indication)
- 2D ID Map: Two-Dimensional ID Map System with Target Trace
- Target Tones: 1, 2, 5 - Tone | 1, 2, 5 - Region All Tones
- Target Volume: 0 to 25
- Target Pitch: 1 to 50
- Ferrous Volume: 0 to 25
- Ferrous Pitch: 1 to 50
- Audio Themes: Normal, Enhanced, Depth, Prospecting
- Volume Profiles: Simple, Medium, Rich
- Threshold Level: 0 to 25
- Threshold Pitch: 1 to 50
- Recovery Speed: 0 to 8
- Ferrous Limits: Upper 0 to 14 | Lower 0 to 9
- Ferrous Limits Custom: 1 to 4
- Shortcuts: Soft Keys: 2 (Action Bar), 1 (User Button)
- Depth Indicator: 5 levels
- Shaft System: 3-piece highly collapsible carbon-fibre
- Extended Length: 1440 mm / 56.7 inch
- Collapsed Length: 630 mm / 24.8 inch
- Weight: 1.3 kg / 2.9 lb

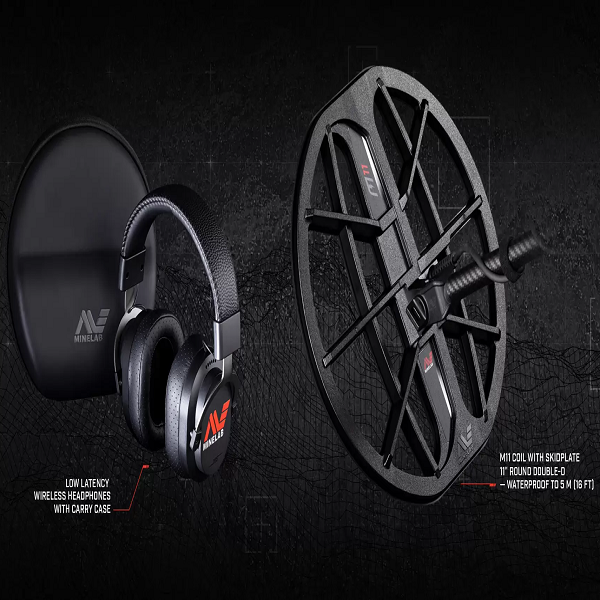

- Standard Coil (M11): 11-inch round Double-D coil with skidplate (waterproof to 5 m / 16 ft)
- Audio Output: Speaker | 3.5 mm (1/8") headphones | Wireless low latency headphones
- Headphones (Included): Minelab ML-105 wireless low latency headphones (non waterproof)
- Battery: Internal rechargeable Lithium-ion battery
- Battery Run Time: Approx. 10 hours
- Battery Charge Time: Approx. 7 hours
- Waterproof: Waterproof to 5 m / 16 ft, IP68
- Key Technologies: Multi-IQ+ (High Power Simultaneous Multi-Frequency)
- Included Accessories: USB Charging Cable, 5x Screen Protectors, 3.5 mm Headphone Audio Cable, Headphone Case
- Software Upgradable: Yes, via USB connection (Windows or Mac OS compatible)
- Warranty: Please refer to www.minelab.com/warranty-conditions for full warranty terms and conditions. Register your product warranty online at register.minelab.com
