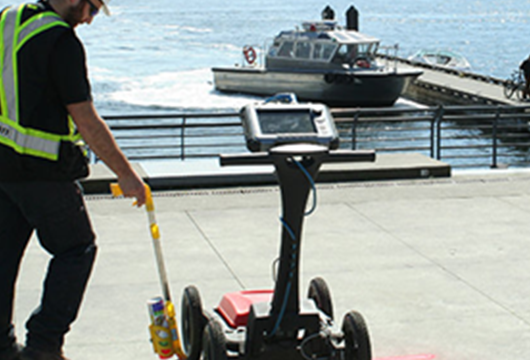

With UtilityScan Pro, users can quickly identify and mark the position and depth of metallic and non-metallic objects; including utilities such as gas, communications and sewer lines as well as underground storage tanks and PVC pipes. Based on the SIR 4000 controller, the UtilityScan Pro provides the GPR professional with solutions to any underground locating situation.
The UtilityScan Pro system provides a non-destructive means to accurately locate underground utilities and shallow geophysical characteristics.

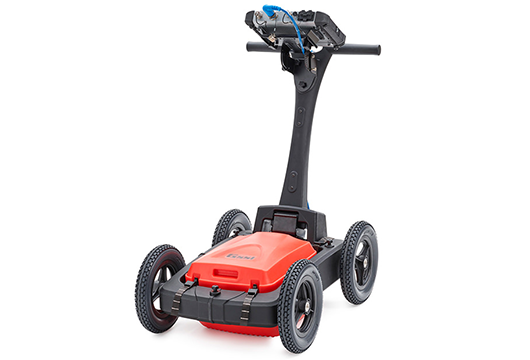

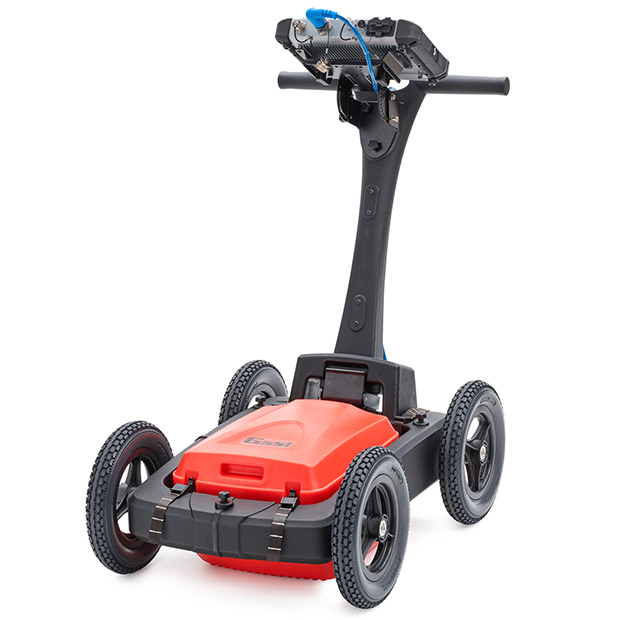

Users can customize the UtilityScan Pro with multiple antenna offerings and cart options. The tailored options provide survey flexibility, from smooth prepared surfaces to rugged terrain with our rugged four-wheel cart, and suit a number of utility locating applications.
The UtilityScan Pro delivers exceptional data quality and is rugged enough to withstand the job site's toughest conditions. Locate subsurface utilities with confidence.

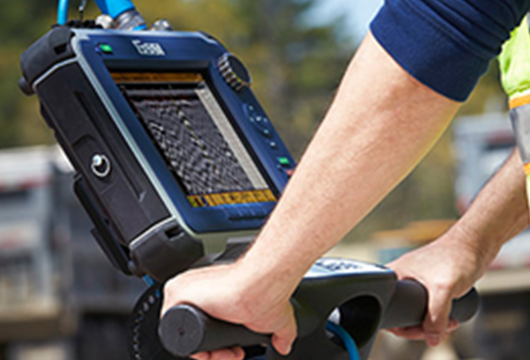

The UtilityScan Pro system features our state-of-the-art SIR 4000 controller and can incorporate an optional AC power accessory. The SIR 4000 controller incorporates advanced display modes and filtering capabilities for in-the-field processing and imaging. The LineTrac accessory for digital antennas adds the ability to detect AC power and induced RF energy present in buried utilities.
SYSTEM SIR 4000
ANTENNAS - Compatible with all GSSI antennas
NUMBER OF CHANNELS - Records data from 1 single-frequency antenna or 1 dual-frequency antenna
DATA STORAGE - 32 GB Flash, 1 GB RAM
DISPLAY - Enhanced 10.4" LED display with internal high brightness, Active matrix 1024 x 768 resolution and 32 -bit color
GPS - Data logged internally
DISPLAY MODES - Linescan, Linescan plus O-scope, Wiggle trace Full 3D, 256 color bins are used to represent the amplitude and polarity of the signal
ENVIRONMENTAL RATING - IP65
DATA FORMAT - RADAN (R) (dzt)
OUTPUT DATA FORMAT - 32-bit
SCAN INTERVAL - User-selectable, up to 4000 scans/sec
NUMBER OF SAMPLES PER SCAN - 256, 512, 1024, 2048, 4096, 8192, 16384
OPERATING MODES - Continuous (time) or survey wheel (distance triggered) or point mode
TIME RANGE - 0-20,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to +126 dB Number of segments in gain curve is user-selectable from 1 to 8
STANDARD REAL-TIME FILTERS - Infinite Impulse Response (IIR) - Low and High Pass, vertical and horizontal-Finite Impulse Response (FIR) - Low and High Pass, vertical and horizontal
ADVANCED REAL-TIME FILTERS - Migration, Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal
AUTOMATIC SYSTEM SETUPS - Storage of an unlimited number of system setup files for different survey conditions and/or antenna deployment configurations
AUTOMATIC ANTENNA RECOGNITION - Automatic recognition of Smart Antennas to allow maximum compliant transmit rate
LANGUAGES - English, Chinese, Japanese, French
OPERATING TEMPERATURE - -20°C to 40°C external (-4°F to 104°F)
BATTERY - Inspired Energy Ni2040ED, 3 hour runtime (battery life dependent on level of display brightness)
TRANSMIT RATE - Up to 800 KHz (International) US/Canada and CE rates depend on antenna model
AVAILABLE PORTS - Antenna inputs analog and digital (one at a time), DC power input, Serial RS232 (GPS port), Accessory connector, HDMI video output, Ethernet to PC, USB 2.0 port, mini USB
ETHERNET - RJ45 100BT Ethernet
USB HOST - USB host with external keyboard support, USB flash drive support and USB HUB support
DIMENSIONS - 14x10x2.75 in (36x25x7 cm)
WEIGHT - 10 lbs (4.53 kg) including battery
RELATIVE HUMIDITY - <95% non-condensing
STORAGE TEMPERATURE - -40°C to 60°C (-40°F to 140°F)
