3D Metal detector for Treasure Hunters and Gold Seekers

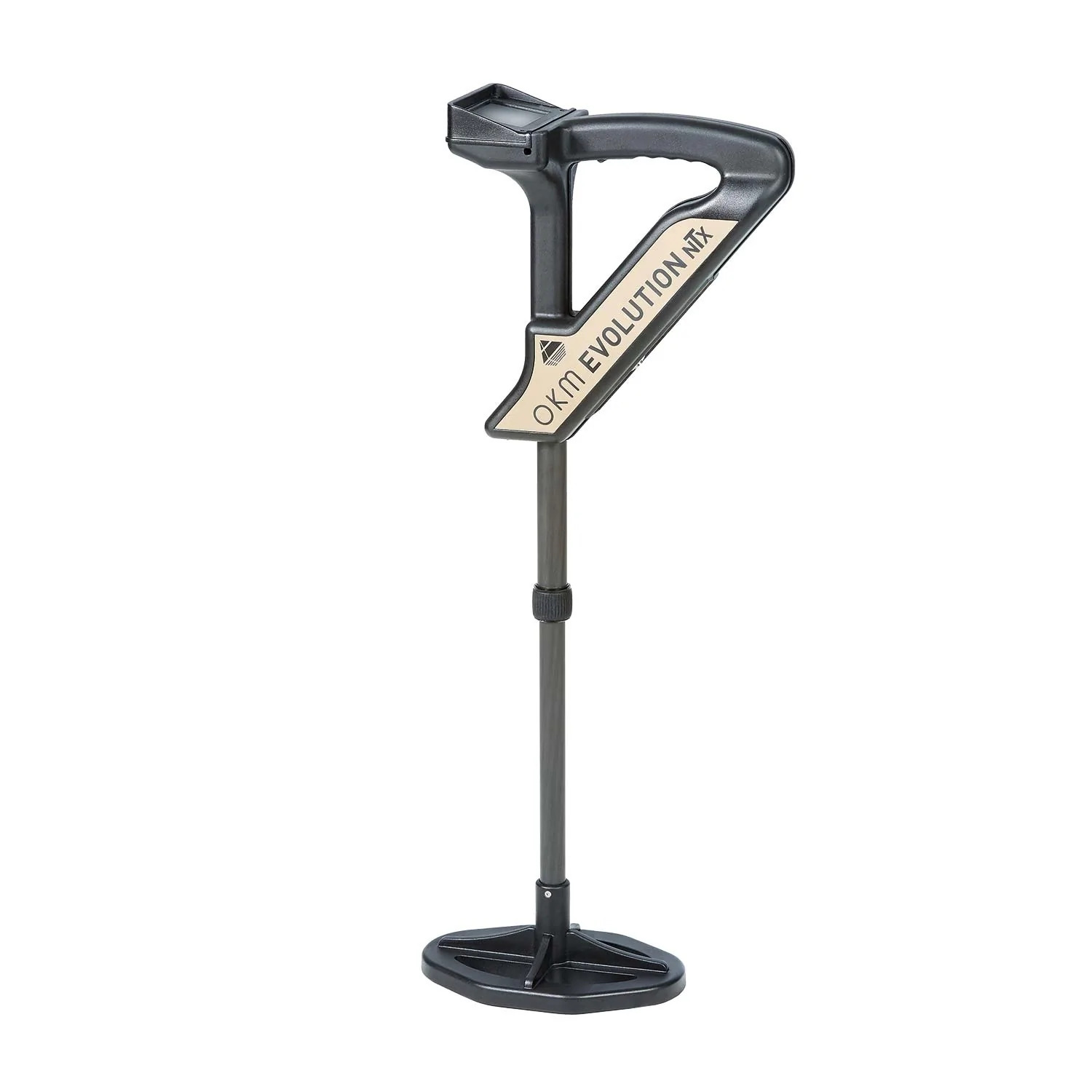

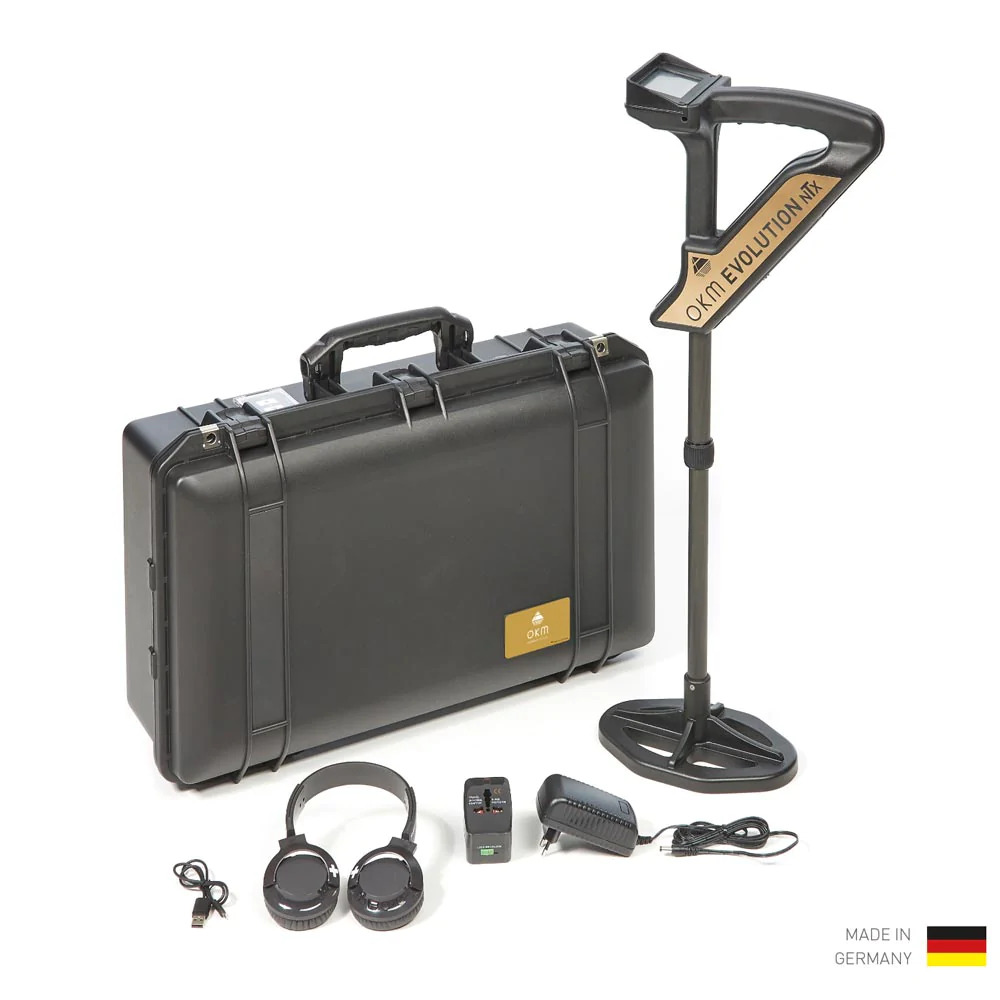

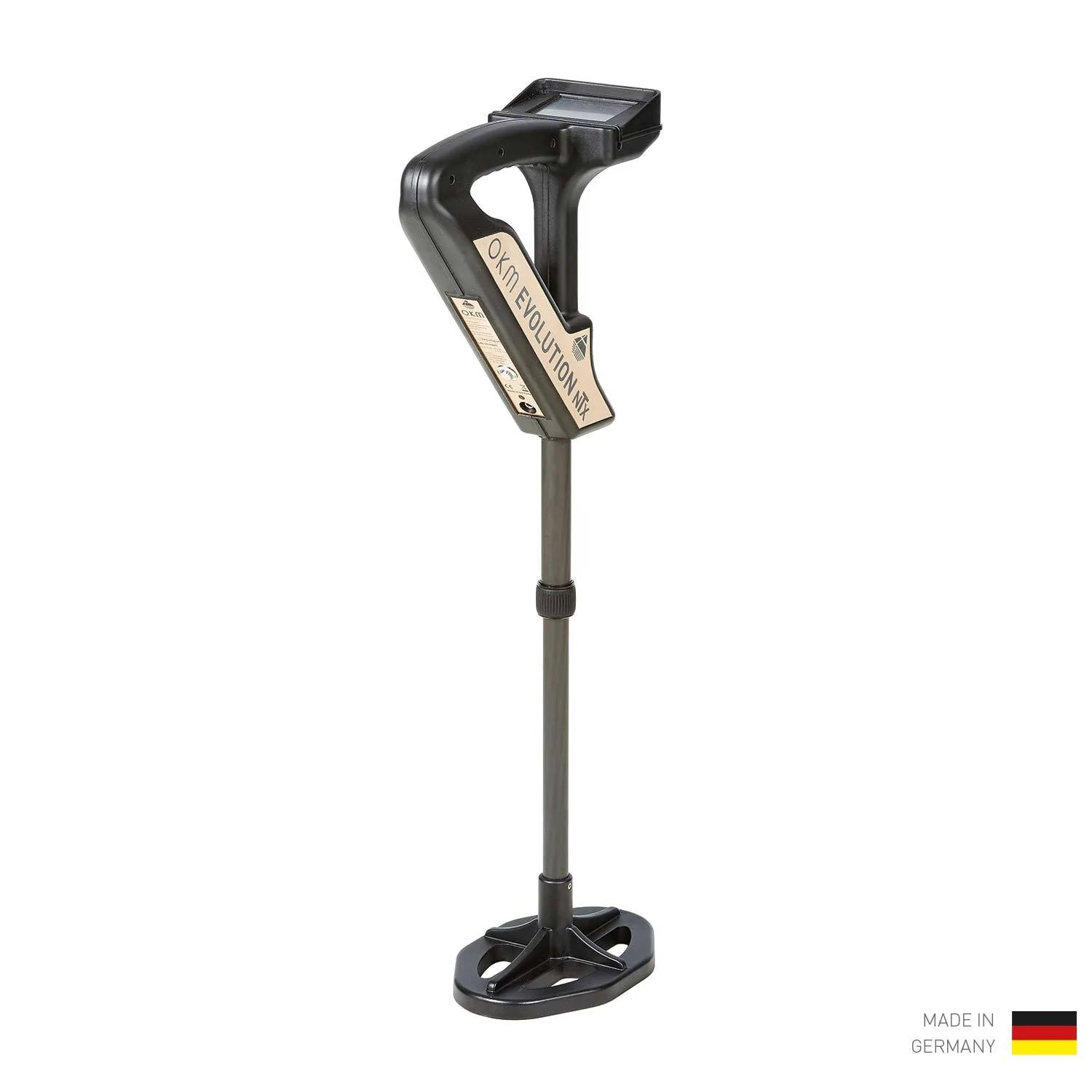

The metal detector and 3D ground scanner Evolution NTX can be used by treasure hunters, gold seekers, metal detectorists and archaeologists who are looking for buried objects, hidden artifacts or other lost items like:

1. Lost valuables (rings, coins, jewelries, wedding bands)

2. Buried treasures and artifacts

3. Ancient boxes, chests, chambers and sepulchers

Unlike other metal detectors, the Evolution NTX can process graphical 3D images of underground treasure hoards and detected anomalies. Thus you can determine size and depth of potential finds before digging. The deep penetration capability is just another advantage of our 3D ground scanner. Many great treasure finds prove the potential of our metal detecting technology made in Germany.

Technical Specifications

Computer, minimum requirements

CD-ROM drive: minimum 4x

Interface (Data transmission): USB

Free disk space: minimum 50 MB

Working memory (RAM): minimum 256 MB

Graphic card: minimum 128 MB, OpenGL-compatible

Processor: minimum 1.2 GHz

Operating system: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10

Data transmission

Technology: Bluetooth

Frequency: 2.4 - 2.4835 GHz

Maximum Transfer Rate: 1 Mbps

Receiving Sensitivity: -85 dBm

Maximum Range: approx. 10 m

Control unit

Dimensions (H x W x D): 540 - 810 x 150 x 280 mm

Weight: approx. 1.5 kg

Input voltage (max.): 19 V DC, 3.16 A, 60 W

Processor / Main CPU: Cortex M3, 32 MHz

Processor / Slave CPU: Cortex M0, 24 MHz

Display: 3.5" Resistive touch, 480 x 320 Pixel

Display CPU: Cortex M3, 32 MHz, 128 KB RAM

Data memory: 4 GB

Sample rate: 1024 values / second

Measurement resolution: 16 bit

Operating temperature: -10 Degree C - 60 Degree C

Storage temperature: -20 Degree C - 70 Degree C

Audio: Internal speaker / Bluetooth

Waterproof: No

Technology: GST / EMSR

Sensor technology / Coil technology: SCMI-15-D / VLF

Air humidity: 5% - 75%

The technical data are average values. Minor deviations are possible during operation.
