The GOLD ID-XL is a mid-range professional gold detector, easy-to-use and ideal to search for low-lying gold findings.

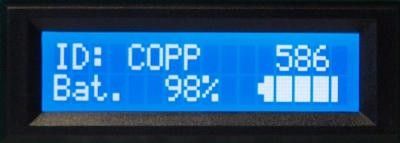

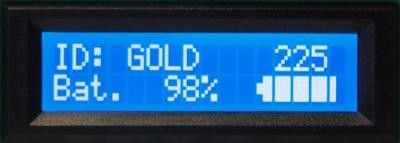

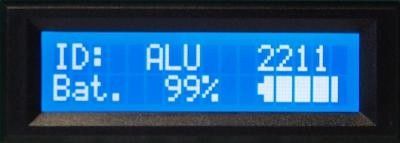

Compared to traditional metal detectors with metal discrimination, GOLD-ID users have the benefit that not only the conductivity value is displayed, but also the type of metal appears on the display, such as "GOLD" for gold, “COPP” for copper and "ALU" for aluminum.
Advantages:
The electronic unit is housed in a rugged enclosure.

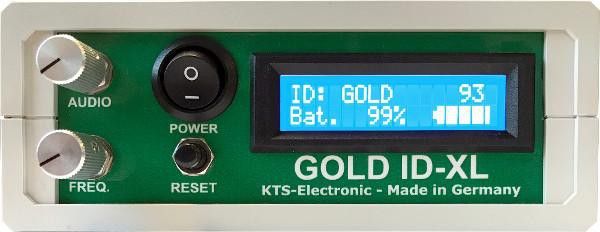

The device is controlled via four control elements
“POWER” ON-/OFF switch
“RESET” automatic zero balance
“AUDIO” volume control
“FREQ” frequency adjustment
Display presentation of metal type and conductivity (ID)
The handling of GOLD ID-XL is quite simple:
Complicated adjustments or selection of special search modes are not necessary. GOLD ID-XL is ready after POWER switch is started and RESET button is pressed.
Due to the active metal distinction a constant metal discrimination without program change takes place.
Software / Workspace App |
Basic data | |
---|---|
Operating temperatures | -20°C - 60 °C |
Total weight (package) | 9,6 KG |
Dimensions package (H x W x D) | 52 cm x 21 x cm 61 cm |
Electronic unit | |
---|---|
Dimensions (H x W x D) | 6,2 cm x 15,6 cm x 21,1 cm |
Weight | 880 grams |
Processor speed | 16 MHz - 64 MHz |
Display | two-line LCD display |
Search methods | Pulse induktion |
Battery pack | |
---|---|
Cell type | Lithium ion |
Operating time | 4 - 8 hours |

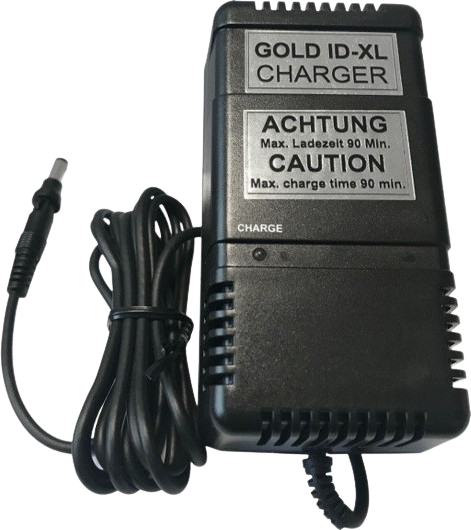

Charging time | max. 90 minutes |
Output | 14,8 V |

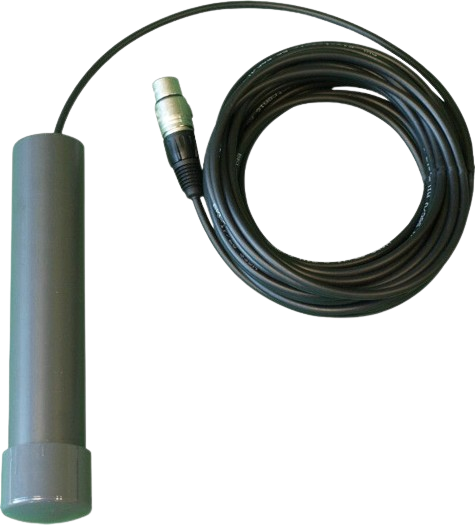

Cylindrical coil | |
---|---|
Ground compensation | Yes |
Dimensions (H x W x D) | 21,6 cm x 5 cm |
Weight | 610 grams |
1 x 1 m search frame | |
---|---|
Ground compensation | Yes |
Dimensions (H x W x D) | 100 cm x 100 cm x 5 cm |
Dimensions in bag (H x W x D) | 54 cm x 15 cm x 15 cm |
Weight | 1,57 KG |

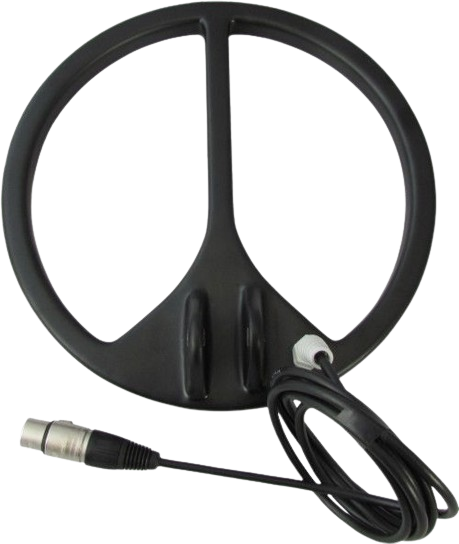

25 cm coil | |
---|---|
Ground compensation | Yes |
Dimensions (H x W x D) | 5 cm x 25 cm |
Weight | 470 grams |
Certifications | |
---|---|
Directive 2004/108/EC | Yes |
DIN EN 61326 | Yes |
VDE 0875-11 | Yes |
Certificate of Origin | Available.Issueance by the IHK Darmstadt (Chamber of Industry and Commerce) on demand |
