REAL TIME SAMPLING:
The COBRA PLUG-IN GPR uses Real Time Sampling of the radar signal. Today major manufacturers use conventional interleaved sequential sampling, giving only a down converted replica of the real signal. The Real Time Sampling allows for 32,000 stacks/second resulting in an amazing 45 dB increased signal-to-noise ratio.
Wireless Bluetooth connection between GPR and control unit replaces interfering coax-cables and fragile fibre optic links. An Ultra Rugged Mesa PDA with embedded software is used for data collection.
Data is stored in standard SEGY geophysical format.

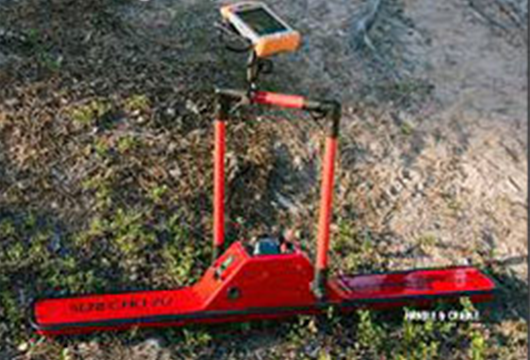

The complete GPR-unit plugs into a single SUBECHO Antenna, any selectable model. No need for bistatic configuration.
CUTTING-EDGE TECHNOLOGY - High Penetration Real Time Sampling GPR
MONOSTATIC ANTENNA - Better performance vs. conventional bistatic GPR

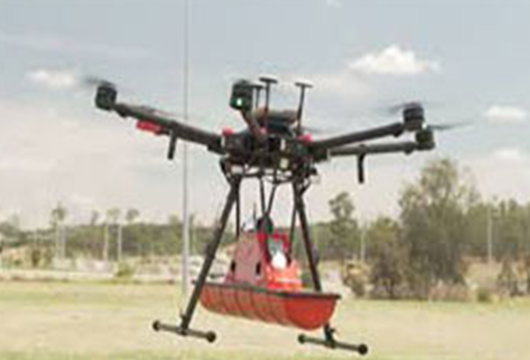

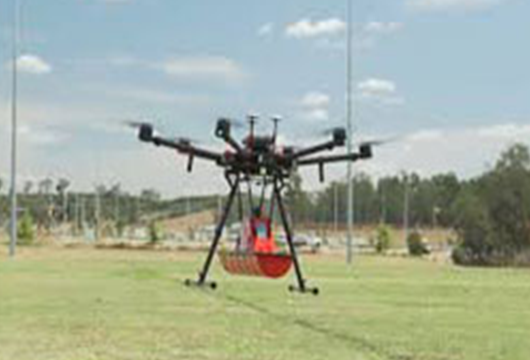

AIRBORNE & AIR-COUPLED - Easy to operate, even in non-walkable terrain
PERFORMANCE - 45 dB increased S/N-ratio versus conventional GPR
GPR - Fits all our popular low frequency SE-antennas
HANDHELD RUGGED CONTROL UNIT - Included, with DGPS
WIRELESS BLUETOOTH OPERATION - No cables, less ringing
LOW POWER CONSUMPTION - 16 hours between charges
COMPACT AND LIGHT - Complete system below 7 kg
UNPARALLELED PENETRATION- Up to 120 m depths
LOW TRANSMITTER OUTPUT - Less ringing in data
POST PROCESSING SOFTWARE - Included
